Metal Cutting Services
Need a special cut metal piece? Does your project require something to be custom fabricated? We have a variety of options available for your cutting needs. Put our 30 years of experience to work for you!
Our Metal Cutting Services Include

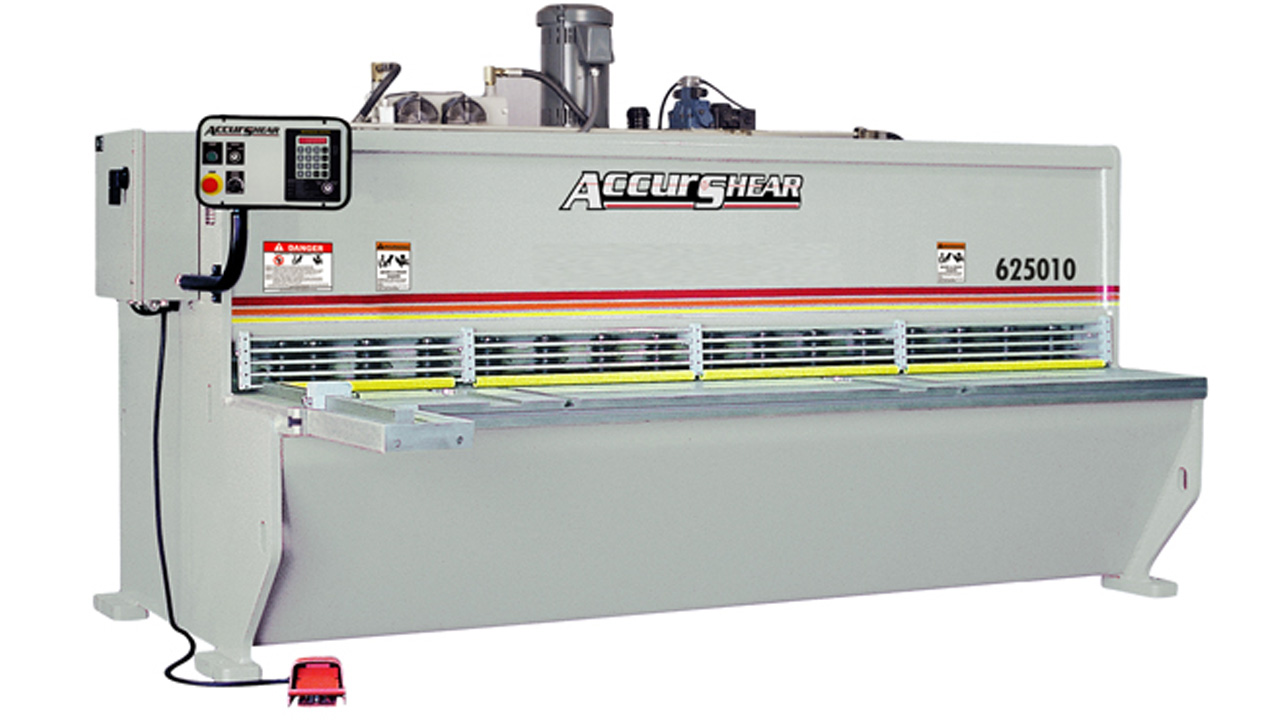

- Shearing

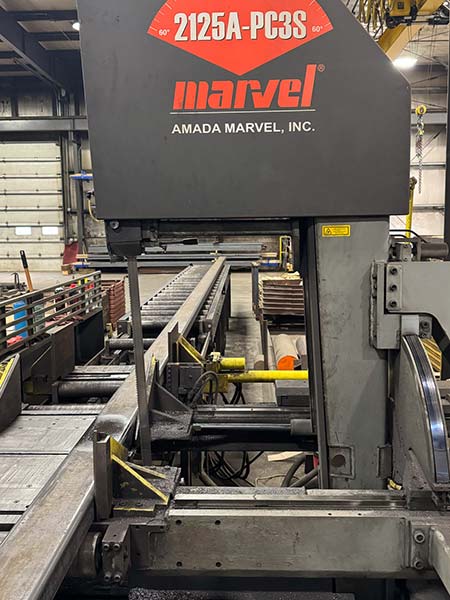

- Marvel Bandsaw/Miter Saw
- capable of cutting up to a 60-degree angle
- Cold Saw Cutting
- CNC Burn table
- Plasma Cutting
- Flame Cutting
CSNC-125 Carbide Circular Saw - Cold Saw
Cutting Capacity
- Round 90° - 1”- 5”
- Square 90° - 1”-3.54”
- Blade Drive – 25 HP VFD
- Blade Speed – 50-180 MPM
- Blade Size – Carbide/Cermet Tipped: 460mm x 2.7mm kerf
- Bar Stock Length – 10’-20’
- Trim Cut – zero or programmable
- Cut Off Length – Min 0.4” up to 39”
- Single Stroke – 39”
- Remnant Length – 3.94”/100mm+cut length+cutter thickness
- Hydraulic Motor: 3 HP VFD - Width of 42” for rounds
- Machine Capacity: 13,277 LBS.
Kinetic K2500 Downdraft Plasma/Oxy Cutting Table
10'x30' cutting bed
- Hypertherm HPR 400XD plasma cutting system
- Plasma cutting of steel and stainless-steel material up to to 2" thick
- Plasma beveling up to 45 degrees (2" max plate thickness)
Single oxy cutting head
- oxy cutting of steel plate up to 7-1/2" thick
Six Station drill turret head
- optional drilled holes up to 3/4" diameter if more precise holes are needed (up to 4" plate thickness)
